General Service Pressure Gauge with 400 Bar Range, IP54 Protection, and Copper Alloy Wetted Parts
| Place of Origin | China |
|---|---|
| Brand Name | OEM |
| Model Number | Y-40/50/63/75/100/120/150 |
| Minimum Order Quantity | 1 |
| Price | Consult supplier |
| Packaging Details | Cardboard box |
| Delivery Time | 2-6 working weeks |
| Payment Terms | T/T |
| Supply Ability | 10000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | 400 bar Pressure Gauge,Copper Alloy Wetted Parts Pressure Gauge,Black Steel Case Pressure Gauge |
||
|---|---|---|---|
Product Description

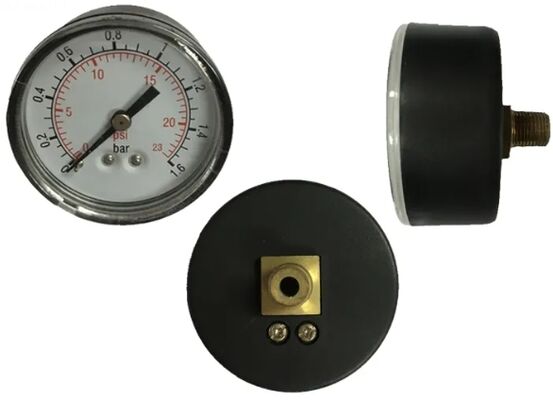

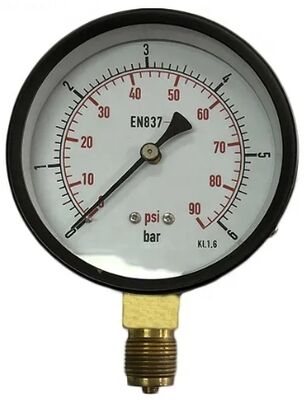

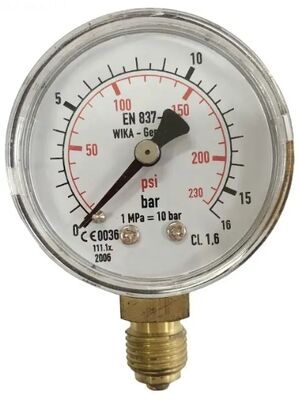

General Service Pressure Gauge
Professional pressure measurement instrument designed for general industrial applications with reliable performance and versatile mounting options.
Available Sizes
- 1.5" (40mm)
- 2" (50mm)
- 2.5" (63mm)
- 3" (75mm)
- 4" (100mm)
- 4.5" (120mm)
- 6" (150mm)
Technical Specifications
Measuring Range
Up to 400 bar
Case Material
Black steel
Wetted Parts
Copper alloy
Accuracy
±1.6%, ±2.5% full scale
Connection Types
Bottom or back mounting

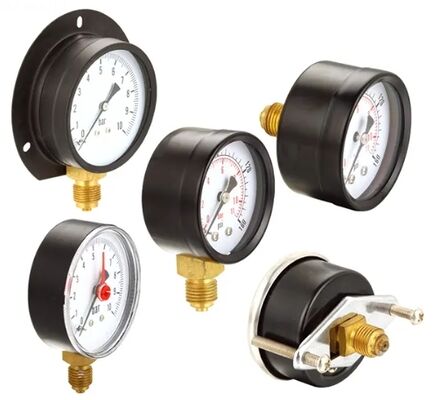

Mounting Options
Direct, flange, or clamp
Protection Rating
IP54
Customization Available: Various pressure units and custom dial configurations available upon request. Metric or imperial thread options also offered.
