Coiled Tubing Hydraulic Setting Tool For Downhole Operations 65mm-105mm
| Minimum Order Quantity | 1PC |
|---|---|
| Packaging Details | Free Fumigation Wooden Case |
| Delivery Time | 40-60Days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Tool Size (mm) | 65mm-105mm | Name | Hydraulic Setting Tool |
|---|---|---|---|
| Max Setting Force (KN) | 90KN-255KN | Function | For Coiled Tubing Lower Bridge Plugs |
| Material | 4140HT | Typical Application | Coiled Tubing/ Cementing/ Well Repairing/ Hydraulic Fracturing/ Milling/ Well Drilling |
| Standard Fulfill | API 5CT | Drilling Fluid Applied | Clean Water Base Mud/ Salty Water Base Mud And Oil Base Mud |
| Temerature Range | No Higher Than 175°C | HS Code | 84122910 |
| HS Code | 84314310 | ||
| Highlight | 65mm Hydraulic Setting Tool,82mm Downhole Setting Tool,Coiled Tubing Setting Tool |
||
Product Description

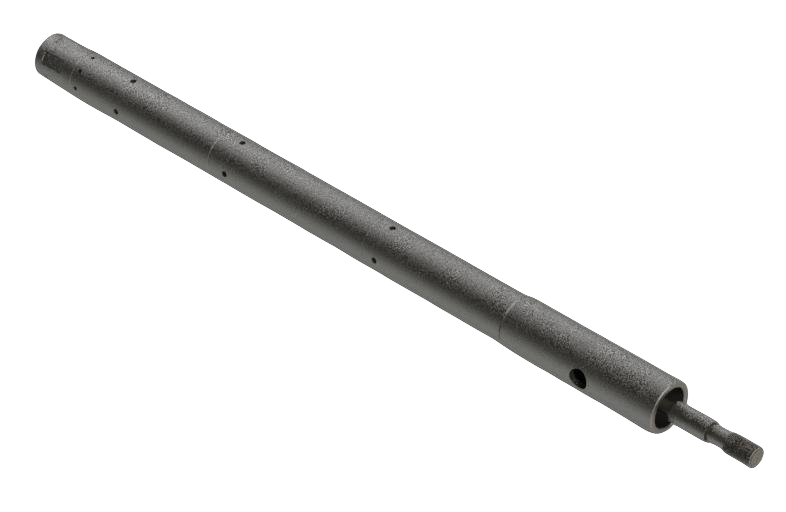

Hydraulic Setting Tool
Applications
The hydraulic setting tool is an essential tool for coiled tubing lower bridge plugs, packers and other operations. It can be used to set and seal bridge plugs under hydraulic pressure.
Features
- Setting or releasing the bridge plug and packer by dropping ball
- Can co-work with jetting tool to accomplish bridge plug setting and jetting operation simultaneously
- Multi cylinders configured to set high load tools at low pressure
Sizes Availability
| Model Number | Tool Size (mm) | Max Setting Force (KN) | Thread Type |
|---|---|---|---|
| 509-650 | 65 | 90 | * |
| 509-820 | 82 | 175 | * |
| 509-980 | 98 | 235 | * |
| 509-1050 | 105 | 255 | * |
