Custom Lengths Lead Filled Weight Bar For Downhole Operations
| Minimum Order Quantity | 1PC |
|---|---|
| Packaging Details | Free Fumigation Wooden Case |
| Delivery Time | 40-60Days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Tool OD (mm) | 38mm-54mm | Tool ID (mm) | 10mm-17mm |
|---|---|---|---|
| Thread Type | AMMT B*P Or PAC B*P | Application | To Add Extra Mass To Coiled Tubing Strings |
| Maintenance | Low Maintenance | Customization | Customizable Based On Specific Well Requirements |
| Productname | Downhole Auxiliary Tools | Material | 4140HT |
| Typical Application | Coiled Tubing/ Cementing/ Well Repairing/ Hydraulic Fracturing/ Milling/ Well Drilling | Standard Fulfill | API 5CT |
| Drilling Fluid Applied | Clean Water Base Mud/ Salty Water Base Mud And Oil Base Mud | Temerature Range | No Higher Than 175°C |
| HS Code | 84122910 | HS Code | 84314310 |
| Highlight | 38mm Tool OD Weight Bar,43mm Tool OD Lead-filled Weight Bar,45mm Tool OD Downhole Weight Bar |
||
Product Description

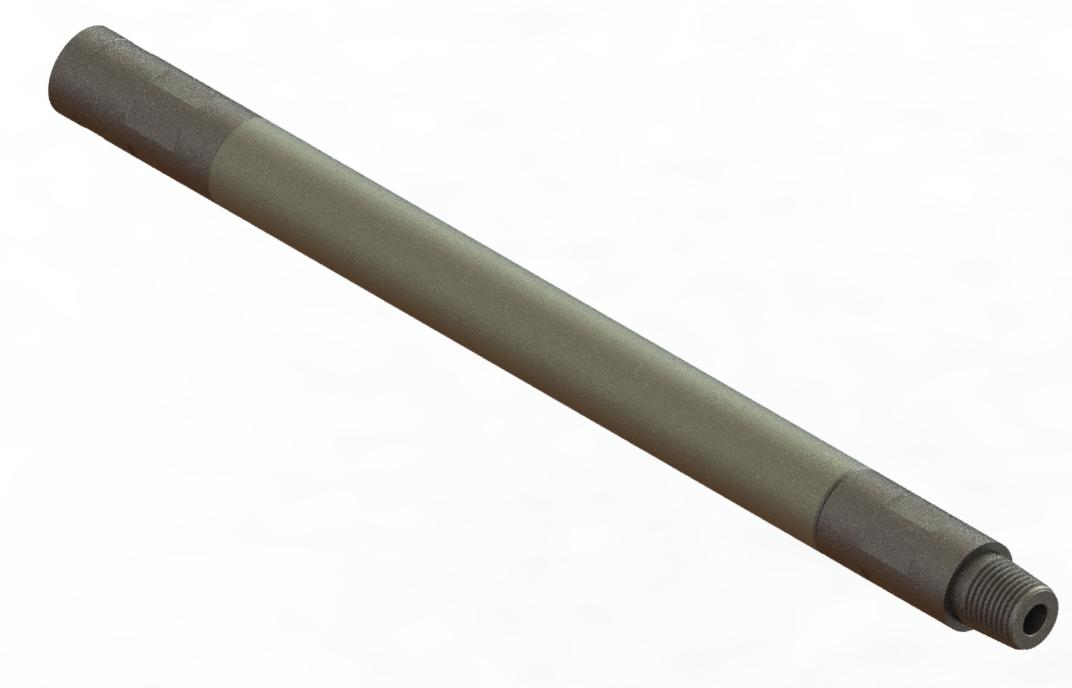

Lead-filled Weight Bar
Applications
The weight bar is designed to add extra mass to coiled tubing strings during running, pulling, and fishing operations.
Features
- Available in custom lengths to meet specific requirements
- Monolithic rigid structure ensures high-strength connections
- Lead-filled external barrel provides maximum weight density
Available Sizes
| Model Number | Tool OD (mm) | Tool ID (mm) | Thread Type |
|---|---|---|---|
| 507-380 | 38 | 10 | 1 AMMT B*P |
| 507-430 | 43 | 10 | 1 AMMT B*P |
| 507-450 | 45 | 10 | 1 AMMT B*P |
| 507-508 | 50.8 | 17 | 1-1/2 AMMT B*P |
| 507-540 | 54 | 17 | 1-1/2 AMMT B*P |
