15 Degree Deflection Knuckle Joint Downhole Tool For Coiled Tubing Operations
| Minimum Order Quantity | 1PC |
|---|---|
| Packaging Details | Free Fumigation Wooden Case |
| Delivery Time | 40-60Days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Tool OD (mm) | 43mm-79mm | Tool ID (mm) | 10mm-25mm |
|---|---|---|---|
| Thread Type | AMMT B*P Or PAC B*P | Application | Coiled Tubing Operation |
| Material | 4140HT | Typical Application | Coiled Tubing/ Cementing/ Well Repairing/ Hydraulic Fracturing/ Milling/ Well Drilling |
| Standard Fulfill | API 5CT | Drilling Fluid Applied | Clean Water Base Mud/ Salty Water Base Mud And Oil Base Mud |
| Temerature Range | No Higher Than 175°C | HS Code | 84122910 |
| HS Code | 84314310 | ||
| Highlight | 15 Degree Deflection Knuckle Joint,Knuckle Joint Downhole Tool,Coiled Tubing Knuckle Joint |
||
Product Description
Knuckle Joint
Applications
The Knuckle joint is one of the most commonly used tools in coiled tubing operation which accomplish the deflection of the tool at a certain angle.
Features

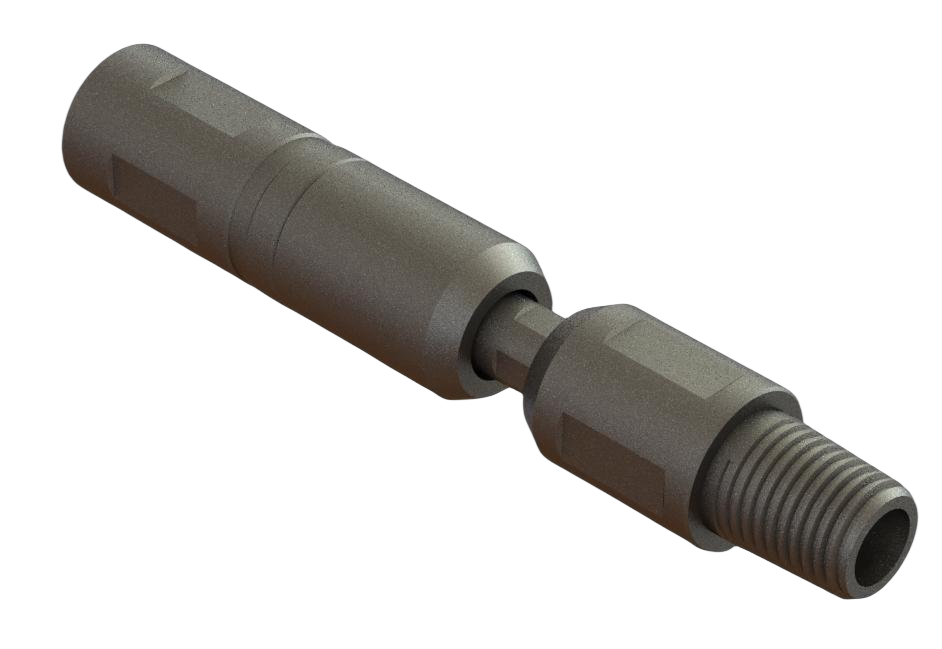

- Ball type structure to accomplish circumferential 15-degree deflection

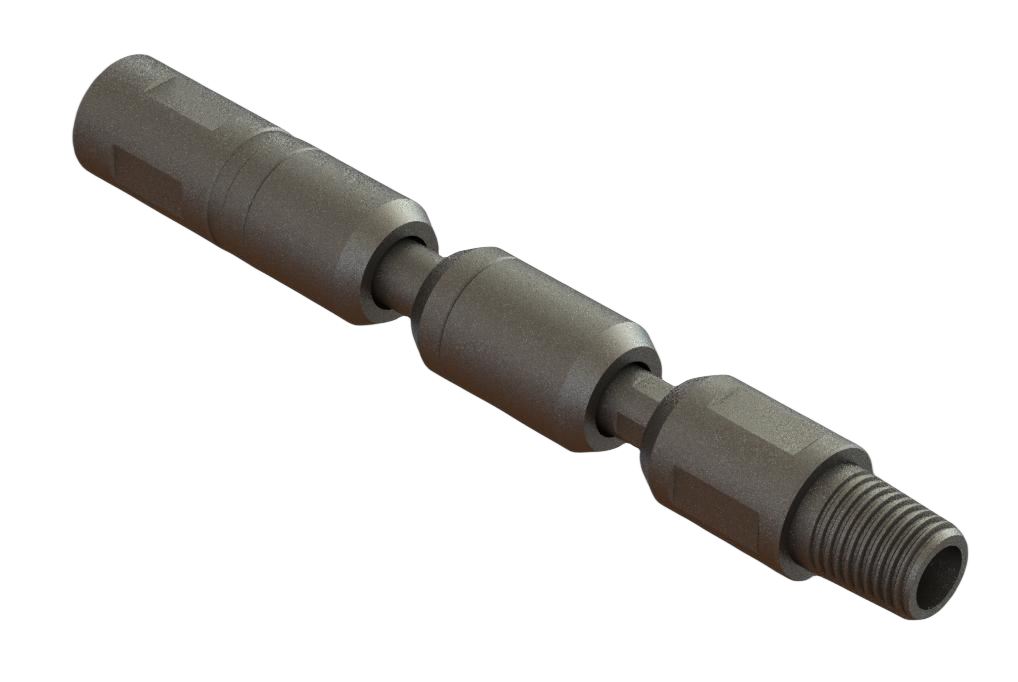

- Multi ball structure assembly to accomplish bigger angle deflection
- Torque resistance and non-toque resistance type available
Sizes Availability
| Model Number | Tool OD (mm) | Tool ID (mm) | Thread Type |
|---|---|---|---|
| 506-430 | 43 | 10 | 1 AMMT B*P |
| 506-450 | 45 | 10 | 1 AMMT B*P |
| 506-508 | 50.8 | 15 | 1-1/2 AMMT B*P |
| 506-540 | 54 | 19 | 1-1/2 AMMT B*P |
| 506-570 | 57 | 19 | 1-1/2 AMMT B*P |
| 506-603 | 60.3 | 19 | 1-1/2 AMMT B*P |
| 506-635 | 63.5 | 19 | 1-1/2 AMMT B*P |
| 506-730 | 73 | 25 | 2-3/8 PAC B*P |
| 506-790 | 79 | 25 | 2-3/8 PAC B*P |
