Combination Anti Rotation Joint Downhole Auxiliary Tools OD 45mm-79mm
| Minimum Order Quantity | 1PC |
|---|---|
| Packaging Details | Free Fumigation Wooden Case |
| Delivery Time | 40-60Days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Tool OD (mm) | 45mm-79mm | Tool ID (mm) | 10mm-25.4mm |
|---|---|---|---|
| Thread Type | AMMT B*P Or PAC B*P | Type | Anti Rotation Joint |
| Application | Oil And Gas Well Drilling And Completion | Productname | Downhole Auxiliary Tools |
| Material | 4140HT | Typical Application | Coiled Tubing/ Cementing/ Well Repairing/ Hydraulic Fracturing/ Milling/ Well Drilling |
| Standard Fulfill | API 5CT | Drilling Fluid Applied | Clean Water Base Mud/ Salty Water Base Mud And Oil Base Mud |
| Temerature Range | No Higher Than 175°C | HS Code | 84122910 |
| HS Code | 84314310 | ||
| Highlight | Anti Rotation Joint Downhole Tool,Downhole Auxiliary Tools Anti Rotation Joint,79mm Combination Anti Rotation Joint |
||
Product Description

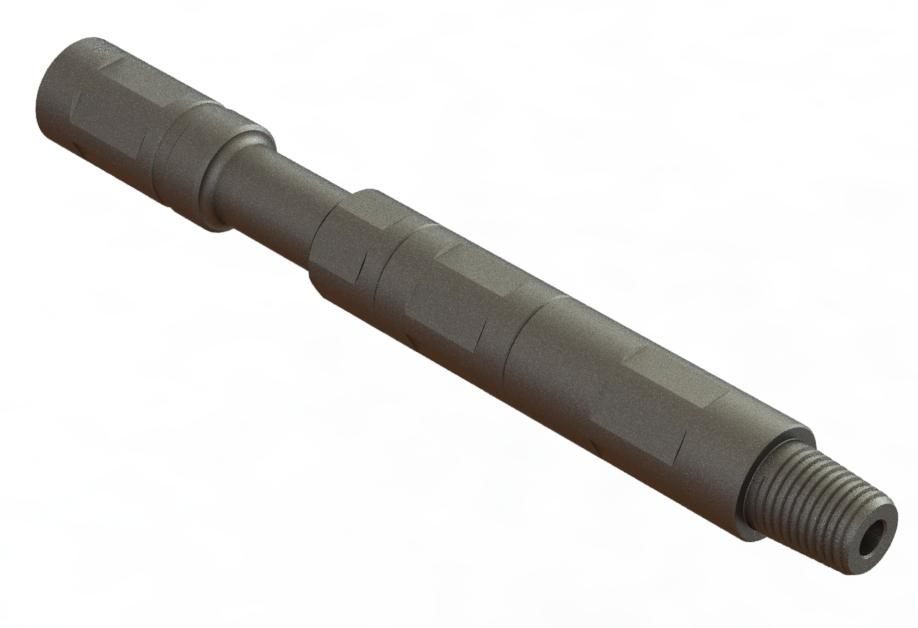

Combination Anti-rotation Joint
The combination anti-rotation joint is engineered to facilitate tubing assembly in applications where tool rotation for thread engagement is challenging, particularly beneficial for long toolstring operations.
Applications
Designed for making up tubing where tool rotation is difficult, especially suited for long toolstring applications.
Features
- Anti-rotation after connection
- Capable of withstanding high pressure and high torque after assembly
Available Sizes
| Model Number | Tool OD (mm) | Tool ID (mm) | Thread Type |
|---|---|---|---|
| 505-450 | 45 | 10 | 1 AMMT B*P |
| 505-540 | 54 | 19 | 1-1/2 AMMT B*P |
| 505-730 | 73 | 25.4 | 2-3/8 PAC B*P |
| 505-790 | 79 | 25.4 | 2-3/8 PAC B*P |
