Downhole Auxiliary Tools Swivel Joint 45mm 54mm 73mm OD For Coiled Tubing
| Minimum Order Quantity | 1PC |
|---|---|
| Packaging Details | Free Fumigation Wooden Case |
| Delivery Time | 40-60Days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Tool OD (mm) | 45mm-79mm | Tool ID (mm) | 10mm-25.4mm |
|---|---|---|---|
| Thread Type | AMMT B*P Or PAC B*P | Application | Solve Torque Transmission Challenges |
| Type | Downhole Auxiliary Tools | Material | 4140HT |
| Typical Application | Coiled Tubing/ Cementing/ Well Repairing/ Hydraulic Fracturing/ Milling/ Well Drilling | Standard Fulfill | API 5CT |
| Drilling Fluid Applied | Clean Water Base Mud/ Salty Water Base Mud And Oil Base Mud | Temerature Range | No Higher Than 175°C |
| HS Code | 84122910 | HS Code | 84314310 |
| Highlight | 45mm Tool OD Swivel Joint,Downhole Auxiliary Tools Swivel Joint,73mm Coiled Tubing Swivel Joint |
||
Product Description

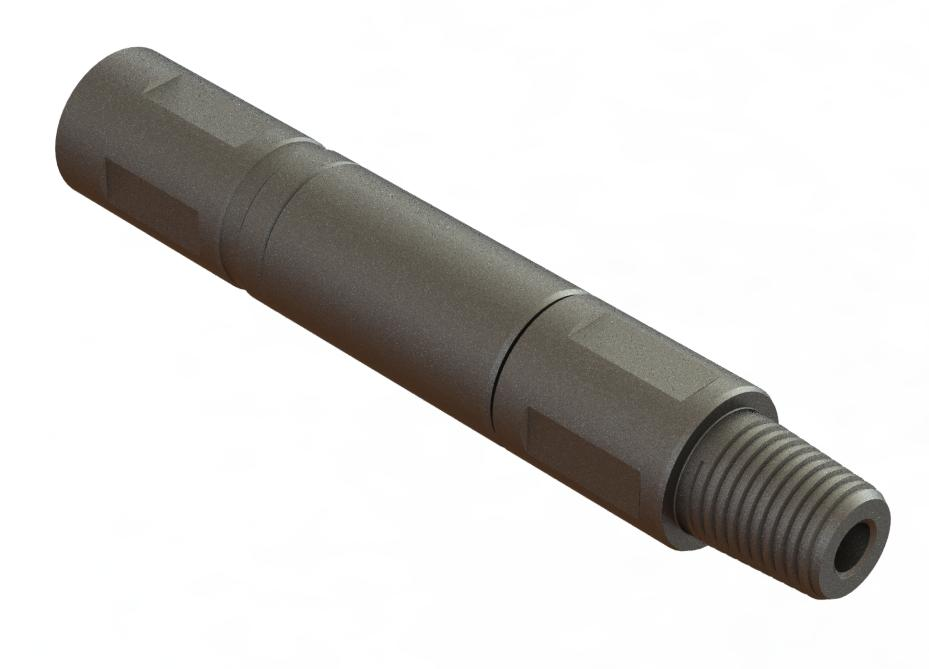

Swivel Joint
Applications
The swivel joint is designed to solve torque transmission challenges in coiled tubing operations under special conditions.
Features
- Dual bearing system allows upper and lower parts to rotate independently without torque transmission
- Internal high-pressure sealing ensures reliable performance during rotation
Available Sizes
| Model Number | Tool OD (mm) | Tool ID (mm) | Thread Type |
|---|---|---|---|
| 504-450 | 45 | 10 | 1 AMMT B*P |
| 504-540 | 54 | 19 | 1-1/2 AMMT B*P |
| 504-730 | 73 | 25.4 | 2-3/8 PAC B*P |
| 504-790 | 79 | 25.4 | 2-3/8 PAC B*P |
