360 Degree Centering Capability Fluted Downhole Centralizer For Tubing Stability
| Minimum Order Quantity | 1PC |
|---|---|
| Packaging Details | Free Fumigation Wooden Case |
| Delivery Time | 40-60Days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Available In Multiple Configurations | Thread Type | AMMT B*P Or PAC B*P |
|---|---|---|---|
| Tool OD (mm) | 38mm-79mm | Tool ID (mm) | 14mm-32mm |
| Type | Fluted Centralizer | Material | 4140HT |
| Typical Application | Coiled Tubing/ Cementing/ Well Repairing/ Hydraulic Fracturing/ Milling/ Well Drilling | Standard Fulfill | API 5CT |
| Drilling Fluid Applied | Clean Water Base Mud/ Salty Water Base Mud And Oil Base Mud | Temerature Range | No Higher Than 175°C |
| HS Code | 84122910 | HS Code | 84314310 |
| Highlight | 360 Degree Centering Fluted Centralizer,Fluted Downhole Centralizer For Tubing |
||
Product Description

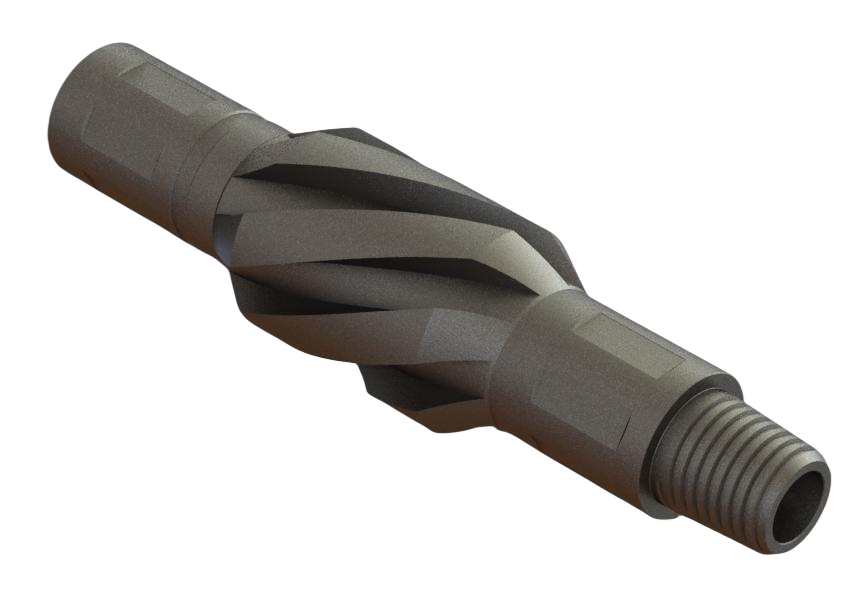

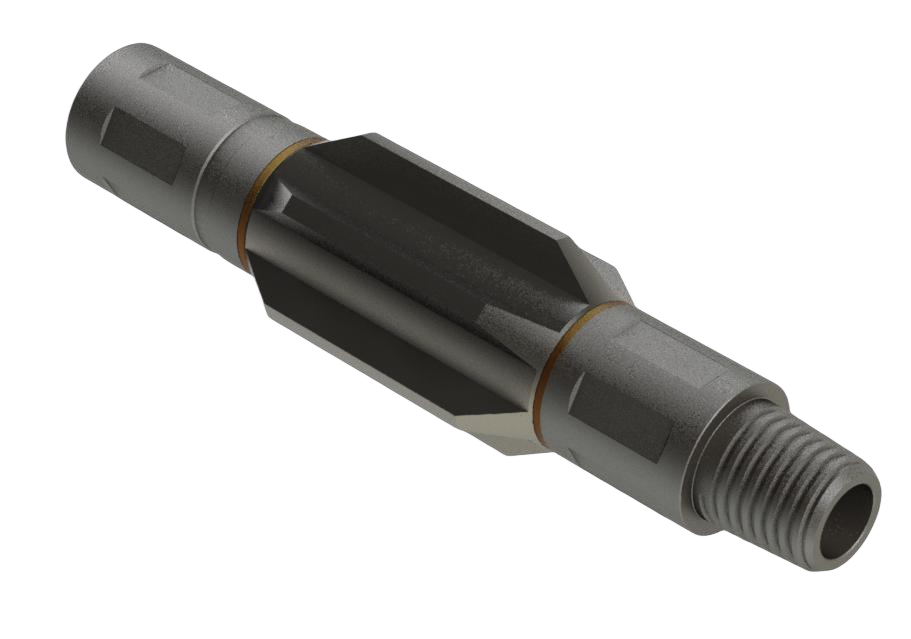

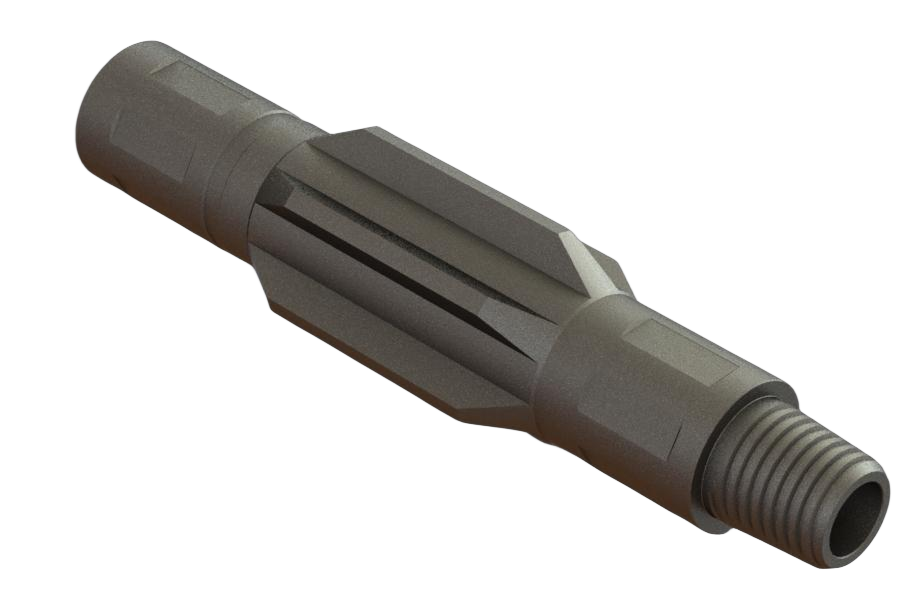

Fluted Centralizer
Applications
The fluted centralizer is used to provide centralization to allow easier location of tools during fishing operations or to provide general stability in tubing.
Features
- Monolithically rigid straight ridge or swirl channel arrangement
- 360-degree centering capability
- Available in multiple configurations including replacement coats and monolithic forms
- Compatible with various tube wheel and righting schemes
Available Sizes
| Model Number | Tool OD (mm) | Tool ID (mm) | Thread Type |
|---|---|---|---|
| 501-380 | 38 | 14 | 1 AMMT B*P |
| 501-430 | 43 | 18 | 1 AMMT B*P |
| 501-450 | 45 | 18 | 1 AMMT B*P |
| 501-508 | 50.8 | 18 | 1-1/2 AMMT B*P |
| 501-540 | 54 | 23 | 1-1/2 AMMT B*P |
| 501-603 | 60.3 | 23 | 1-1/2 AMMT B*P |
| 501-635 | 63.5 | 23 | 1-1/2 AMMT B*P |
| 501-730 | 73 | 32 | 2-3/8 PAC B*P |
| 501-790 | 79 | 32 | 2-3/8 PAC B*P |
