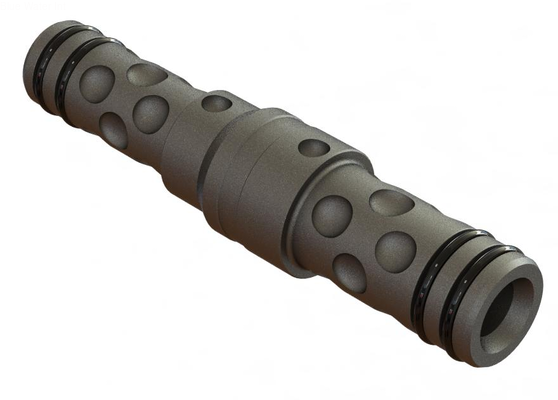

Hydraulic Install Double Dimple On Connector For Different Wall Thickness Coiled Tubes
| Minimum Order Quantity | 1PC |
|---|---|
| Packaging Details | Free Fumigation Wooden Case |
| Delivery Time | 40-60Days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Oil And Gas Well Intervention And Drilling | Productname | Coiled Tubing Connectors |
|---|---|---|---|
| Connector Type | Hydraulic | Compatibility | Compatible With Standard Coiled Tubing Sizes |
| Corrosionresistance | High Corrosion Resistance With Special Coatings | Standardscompliance | API, ISO, And Other Industry Standards |
| Material | 4140HT | Typical Application | Coiled Tubing/ Cementing/ Well Repairing/ Hydraulic Fracturing/ Milling/ Well Drilling |
| Standard Fulfill | API 5CT | Drilling Fluid Applied | Clean Water Base Mud/ Salty Water Base Mud And Oil Base Mud |
| Temerature Range | No Higher Than 175°C | HS Code | 84122910 |
| HS Code | 84314310 | ||
| Highlight | Dimple Connector Coiled Tubing,Hydraulic Install Coiled Tubing Connector,Coiled Tubes Double Dimple On Connector |
||
Product Description
Double Dimple On Connector
Applications
The Double Ended Roll-On Connector is used to connect two sections of coiled tubing to achieve coiled tube recycling of surface and downhole.
Features
- Superior mechanical strength compared to the coiled tubes
- Recycled coiled tubes connected by the double dimple on connector can be wrapped on reels directly
- Hydraulic installation
- Providing high load and high torque
- Suitable for different wall thickness coiled tube connection
Sizes Availability
| Model Number | CT Size Applicable (In) | Tool OD (mm) |
|---|---|---|
| 112-175 | 1.75 | 44.5 |
| 112-200 | 2.0 | 50.8 |
| 112-2375 | 2.375 | 60.3 |
