Quick Connect Dimple On Connector Internal Connection Tool For Coiled Tubing
| Minimum Order Quantity | 1PC |
|---|---|
| Packaging Details | Free Fumigation Wooden Case |
| Delivery Time | 40-60Days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Compatibility | Suitable For Various Coiled Tubing Sizes | Productname | Coiled Tubing Connectors |
|---|---|---|---|
| Material | High-strength Steel Or Alloy | Standardscompliance | API, ISO Certified |
| Connection Type | Hydraulic | Corrosion Resistance | High, With Protective Coatings |
| Application | Oil And Gas Well Intervention And Drilling | Material | 4140HT |
| Typical Application | Coiled Tubing/ Cementing/ Well Repairing/ Hydraulic Fracturing/ Milling/ Well Drilling | Standard Fulfill | API 5CT |
| Drilling Fluid Applied | Clean Water Base Mud/ Salty Water Base Mud And Oil Base Mud | Temerature Range | No Higher Than 175°C |
| HS Code | 84122910 | HS Code | 84314310 |
| Highlight | Quick Connect Dimple On Connector,Hydraulic Installation Coiled Tube Connector,Coiled Tubing Dimple On Connector |
||
Product Description

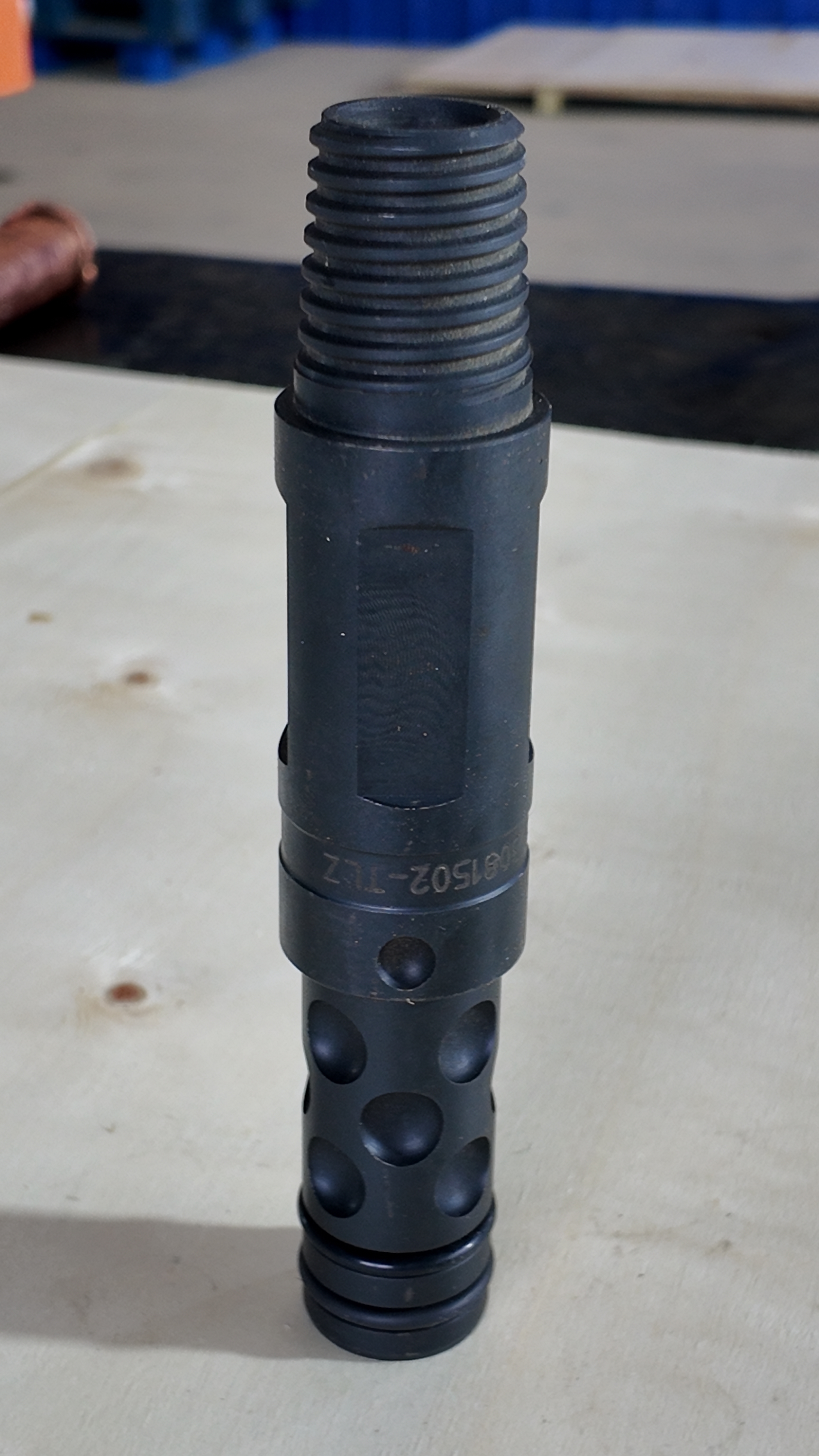

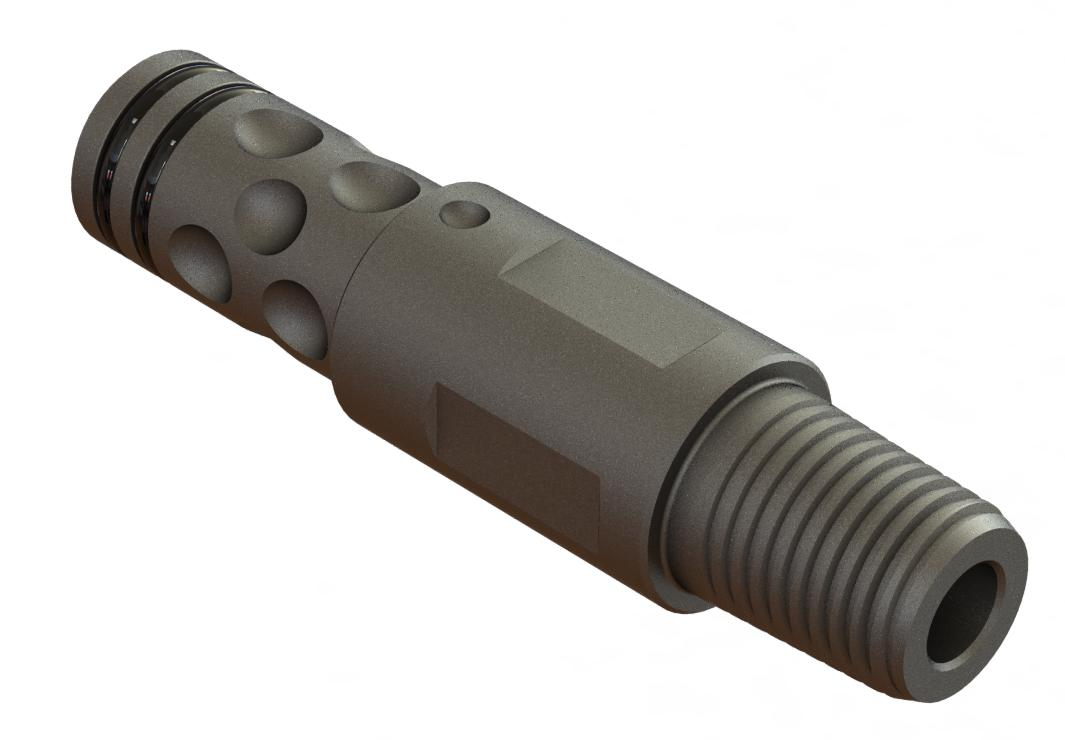

Dimple-On Connector
Applications

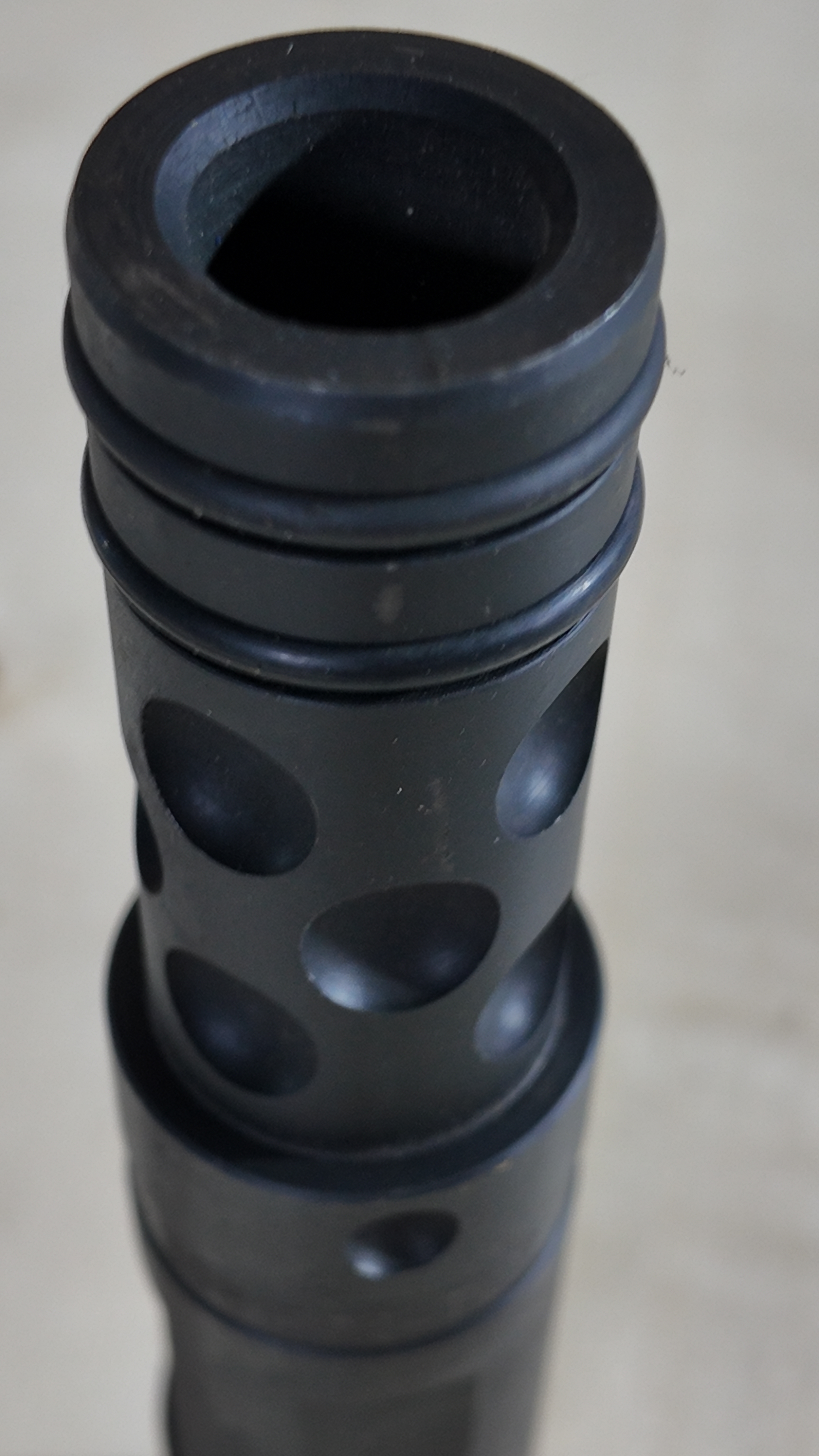

The Dimple-On Connector is an internal connection tool for coiled tubing that provides high tensile and torsional strength. It connects to coiled tubing by creating dimples using a dimpling tool, making it ideal for drilling, cutting, and fishing operations.
The Dimple-On Connector is an internal connection tool for coiled tubing that provides high tensile and torsional strength. It connects to coiled tubing by creating dimples using a dimpling tool, making it ideal for drilling, cutting, and fishing operations.
Key Features
- Superior mechanical strength compared to coiled tubes
- Quick connection: typically 10-15 minutes
- Hydraulic installation process
- Especially suitable for large size and high steel grade tube internal connections
- Designed for heavy load downhole operations
Available Sizes

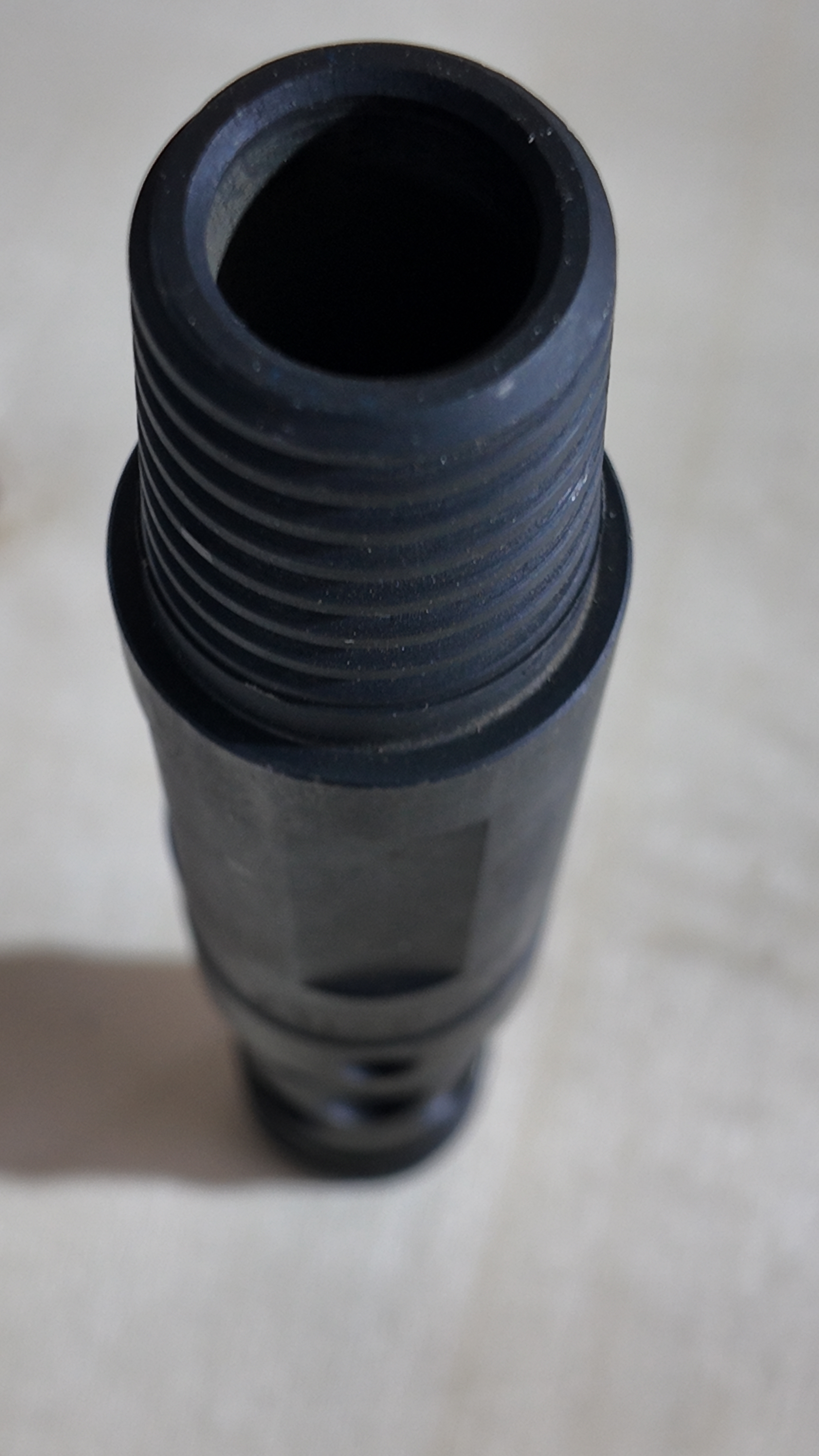

| Model Number | CT Size Applicable (In) | Tool OD (mm) | Thread Type |
|---|---|---|---|
| 111-150 | 1.5 | 38.1 | 1 AMMT pin |
| 111-175 | 1.75 | 44.5 | 1 AMMT pin |
| 111-200 | 2.0 | 50.8 | 1-1/2 AMMT pin |
| 111-2375 | 2.375 | 60.3 | 1-1/2 AMMT pin |
