Quick Installation Coiled Tubing Roll On Connectors With Specific Wall Thickness
| Minimum Order Quantity | 1PC |
|---|---|
| Packaging Details | Free Fumigation Wooden Case |
| Delivery Time | 40-60Days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Productname | Coiled Tubing Connectors | Material | High-strength Steel Or Alloy |
|---|---|---|---|
| Corrosion Resistance | High Corrosion Resistance Coating | Application | Oil And Gas Well Intervention And Drilling |
| Compatibility | Compatible With Standard Coiled Tubing | Material | 4140HT |
| Typical Application | Coiled Tubing/ Cementing/ Well Repairing/ Hydraulic Fracturing/ Milling/ Well Drilling | Standard Fulfill | API 5CT |
| Drilling Fluid Applied | Clean Water Base Mud/ Salty Water Base Mud And Oil Base Mud | Temerature Range | No Higher Than 175°C |
| HS Code | 84122910 | HS Code | 84314310 |
| Highlight | Quick Install Roll On Connector,Coiled Tubing Roll On Connectors |
||
Product Description

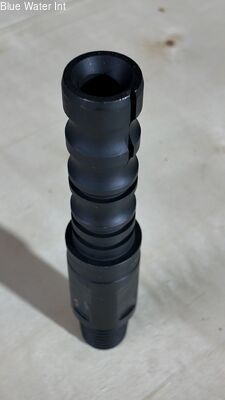

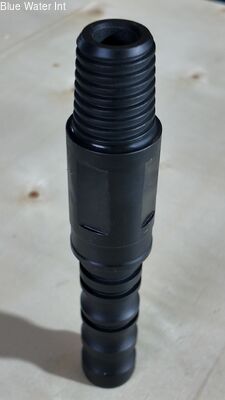

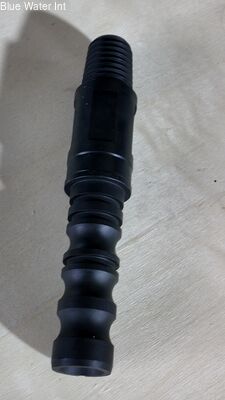

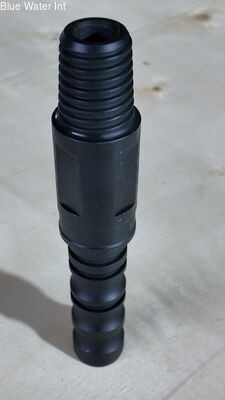

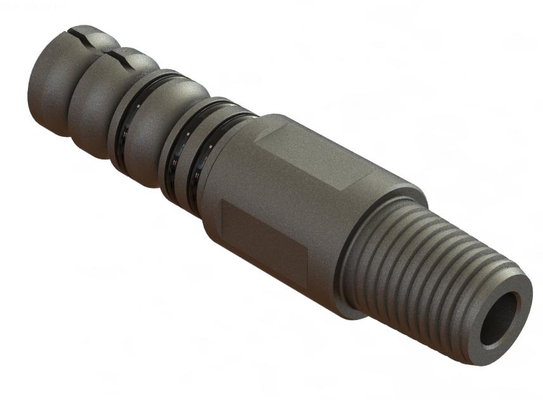

Roll-On Connector
Applications
The Coiled Tubing Roll-On Connector is an inline connector designed for standard coiled tubing applications. Manufactured for specific wall thicknesses, this connector offers quick and easy installation.
Features
- Connects to coiled tubes using special tooling
- Eliminates the need for weld cleaning while maintaining high-pressure sealing
Available Sizes
| Model Number | CT Applicable (In) | Tool OD (mm) | Thread Type |
|---|---|---|---|
| 104-100 | 1.0 | 25.40 | *Pin |
| 104-125 | 1.25 | 31.75 | *Pin |
| 104-150 | 1.5 | 38.10 | 1 AMMT pin |
| 104-175 | 1.75 | 44.50 | 1 AMMT pin |
| 104-200 | 2.0 | 50.80 | 1-1/2 AMMT pin |
