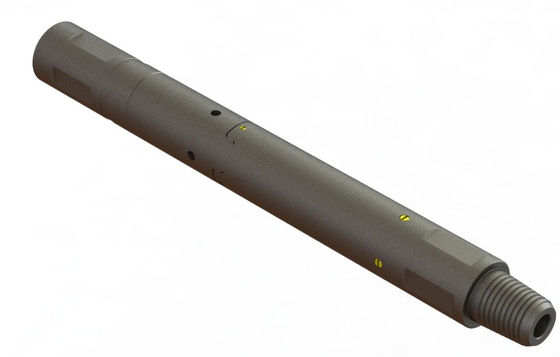

Dog Type Hydraulic Disconnect Tools For Emergency Release And Big Torque Load
| Minimum Order Quantity | 1PC |
|---|---|
| Packaging Details | Free Fumigation Wooden Case |
| Delivery Time | 40-60Days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Dog Type Hydraulic Disconnect | Applications | Release The Bottom Tools By Dropping The Ball |
|---|---|---|---|
| Tool OD (In) | 1.69-3.11 | Tool ID (In) | 0.472-1.06 |
| Thread Type | AMMT B*P Or PAC B*P | Material | 4140HT |
| Typical Application | Coiled Tubing/ Cementing/ Well Repairing/ Hydraulic Fracturing/ Milling/ Well Drilling | Standard Fulfill | API 5CT |
| Drilling Fluid Applied | Clean Water Base Mud/ Salty Water Base Mud And Oil Base Mud | Temerature Range | No Higher Than 175°C |
| HS Code | 84122910 | HS Code | 84314310 |
| Highlight | Dog Type Hydraulic Disconnect Tools,Disconnect Tools For Emergency Release,Big Torque Load Hydraulic Disconnect |
||
Product Description
Dog Type Hydraulic Disconnect
Applications
Release the bottom tools by dropping the ball in emergency situations.
Features
- Dog type connection can handle larger torque and impact loads
- Disconnect by dropping the ball at surface with accurately controlled operating pressure
Sizes Availability
| Model Number | Tool OD (In) | Tool ID (In) | Thread Type |
|---|---|---|---|
| 201-430 | 1.69 | 0.472 | 1 AMMT B*P |
| 201-450 | 1.77 | 0.472 | 1 AMMT B*P |
| 201-508 | 2.0 | 0.472 | 1-1/2 AMMT B*P |
| 201-540 | 2.13 | 0.67 | 1-1/2 AMMT B*P |
| 201-635 | 2.5 | 0.75 | 1-1/2 AMMT B*P |
| 201-730 | 2.88 | 0.9 | 2-3/8 PAC B*P |
| 201-790 | 3.11 | 1.06 | 2-3/8 PAC B*P |
Custom requirements for special threads, sizes, materials and other specifications are accepted.
