Dual Activated Circulation Valve Coiled Tubing Tools Two Activation Methods
| Minimum Order Quantity | 1PC |
|---|---|
| Packaging Details | Free Fumigation Wooden Case |
| Delivery Time | 40-60Days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Productname | Valve Tools And MHA | Material | High-grade Metal |
|---|---|---|---|
| Durability | Corrosion-resistant And Long-lasting | Tool OD (mm) | 38mm-79mm |
| Tool ID (mm) | 11mm-24mm | Thread Type | AMMT B*P Or PAC B*P |
| Material | 4140HT | Typical Application | Coiled Tubing/ Cementing/ Well Repairing/ Hydraulic Fracturing/ Milling/ Well Drilling |
| Standard Fulfill | API 5CT | Drilling Fluid Applied | Clean Water Base Mud/ Salty Water Base Mud And Oil Base Mud |
| Temerature Range | No Higher Than 175°C | HS Code | 84122910 |
| HS Code | 84314310 | ||
| Highlight | Coiled Tubing Dual Activated Circulation Valve,Dual Activated Circulation Valve Tools |
||
Product Description

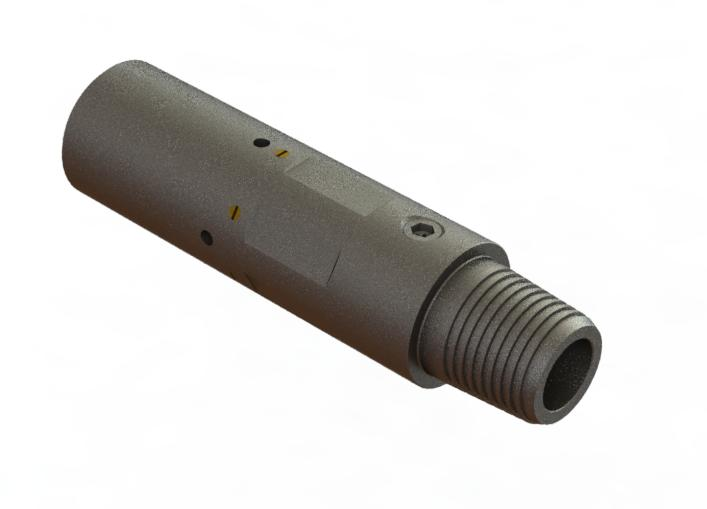

Dual Activated Circulation Valve
Applications
The dual activated circulation valve is an essential tool for coiled tubing operations, providing circulation access when the tool string becomes blocked.
Features
- Two activation methods: dropping ball and rupture
- Precision pressure control by rupture
- Creates a larger circulation channel after dropping ball
Available Sizes
| Model Number | Tool OD (mm) | Tool ID (mm) | Thread Type |
|---|---|---|---|
| 306-380 | 38 | 11 | 1 AMMT B*P |
| 306-430 | 43 | 13 | 1 AMMT B*P |
| 306-450 | 45 | 13 | 1 AMMT B*P |
| 306-508 | 50.8 | 13 | 1-1/2 AMMT B*P |
| 306-540 | 54 | 17 | 1-1/2 AMMT B*P |
| 306-603 | 60.3 | 17 | 1-1/2 AMMT B*P |
| 306-635 | 63.5 | 17 | 1-1/2 AMMT B*P |
| 306-730 | 73 | 22 | 2-3/8 PAC B*P |
| 306-790 | 79 | 22 | 2-3/8 PAC B*P |
