Flow Activated Releasable Overshot Fishing Tool For Retrieving Downhole Tubular
| Minimum Order Quantity | 1PC |
|---|---|
| Packaging Details | Free Fumigation Wooden Case |
| Delivery Time | 40-60Days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Fishing Size Range (mm) | 35mm~64mm | Tool OD (mm) | 57mm-97mm |
|---|---|---|---|
| Apply | Downhole Fishing Tool | Thread Type | AMMT B PAC B REG B |
| Tool | Flow Activated Releasable Overshot | Material | 4140HT |
| Typical Application | Coiled Tubing/ Cementing/ Well Repairing/ Hydraulic Fracturing/ Milling/ Well Drilling | Standard Fulfill | API 5CT |
| Drilling Fluid Applied | Clean Water Base Mud/ Salty Water Base Mud And Oil Base Mud | Temerature Range | No Higher Than 175°C |
| HS Code | 84122910 | HS Code | 84314310 |
| Highlight | Flow Activated Releasable Overshot,Flow Activated Releasable Overshot Fishing Tool |
||
Product Description

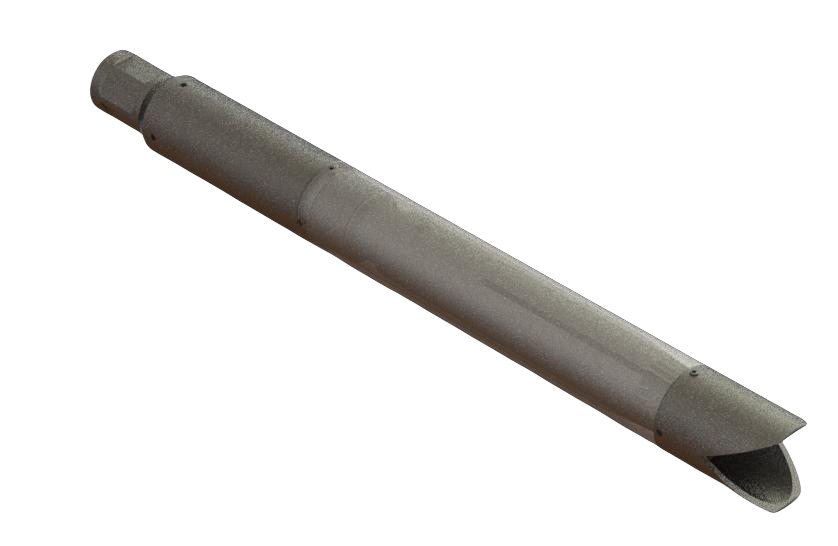

Flow Activated Releasable Overshot
Applications
Designed for retrieving downhole tubular or columnar objects, including oil tubes and standard outer circle downhole tools.
Key Features
- Directly lowers onto the outer circle of fallen objects for efficient retrieval
- Equipped with guide shoe at bottom to facilitate catching fallen objects
- Emergency release via ball drop or displacement circulation when exceeding load capacity
Available Sizes
| Model Number | Tool OD (mm) | Fishing Size Range (mm) | Thread Type |
|---|---|---|---|
| 911-570 | 57 | 35~43 | 1-1/2 AMMT B |
| 911-635 | 63.5 | 40~48 | 1-1/2 AMMT B |
| 911-830 | 83 | 42~54 | 2-3/8 PAC B |
| 911-970 | 97 | 49~64 | 2-3/8 PAC B |
