Simple Operation Full Bore Plug Block Coiled Tubing Internal Channel
| Minimum Order Quantity | 1PC |
|---|---|
| Packaging Details | Free Fumigation Wooden Case |
| Delivery Time | 40-60Days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Tool OD (In) | 2.125 In - 2.875 In | Activation Pressure (Psi) | 500 ~ 1500 Adjustable |
|---|---|---|---|
| Type | Full-Bore Plug | Durability | High |
| Material | 4140HT | Typical Application | Coiled Tubing/ Cementing/ Well Repairing/ Hydraulic Fracturing/ Milling/ Well Drilling |
| Standard Fulfill | API 5CT | Drilling Fluid Applied | Clean Water Base Mud/ Salty Water Base Mud And Oil Base Mud |
| Temerature Range | No Higher Than 175°C | HS Code | 84122910 |
| HS Code | 84314310 | ||
| Highlight | Simple Operation Full Bore Plug,Full Bore Plug for Coiled Tubing |
||
Product Description

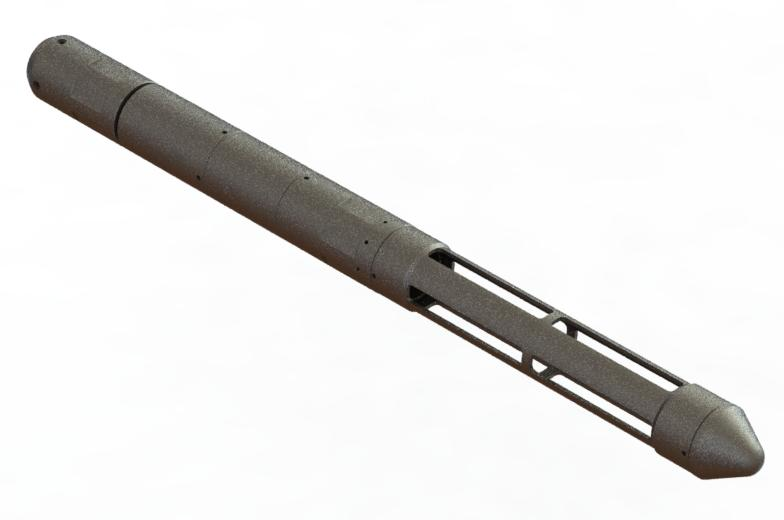

Full-Bore Plug
Applications
Used to block the internal channel of the coiled tubing when running the coiled tubing velocity string.
Features
- Connected to the coiled tubing via an external slip, enabling simple operation
- Activated directly by pressure buildup inside the pipe, with the activation pressure adjustable at the wellhead
- An internal mechanism compatible with a launcher is reserved for velocity string retrieval
- After pressure breakthrough, it maintains the same diameter as the inner diameter of the coiled tubing, without affecting production output
Available Sizes
| Model Number | Tool OD (In) | Activation Pressure (Psi) |
|---|---|---|
| 804-2125 | 2.125 | 500 ~ 1500 Adjustable |
| 804-2500 | 2.5 | 500 ~ 1500 Adjustable |
| 804-2875 | 2.875 | 500 ~ 1500 Adjustable |
