GS Fishing Tool For Standard Coiled Tubing Downhole Tool Fishing
| Minimum Order Quantity | 1PC |
|---|---|
| Packaging Details | Free Fumigation Wooden Case |
| Delivery Time | 40-60Days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Downhole Fishing Tool | Corrosion Resistance | High, Suitable For Harsh Downhole Environments |
|---|---|---|---|
| Tool OD (mm) | 43mm-85mm | GS Size (In) | 1-1/4 In - 3-1/2 In |
| Thread Type | AMMT B PAC B REG B | Material | 4140HT |
| Typical Application | Coiled Tubing/ Cementing/ Well Repairing/ Hydraulic Fracturing/ Milling/ Well Drilling | Standard Fulfill | API 5CT |
| Drilling Fluid Applied | Clean Water Base Mud/ Salty Water Base Mud And Oil Base Mud | Temerature Range | No Higher Than 175°C |
| HS Code | 84122910 | HS Code | 84314310 |
| Highlight | Downhole GS Fishing Tool,1-1/2 Size GS Fishing Tool |
||
Product Description

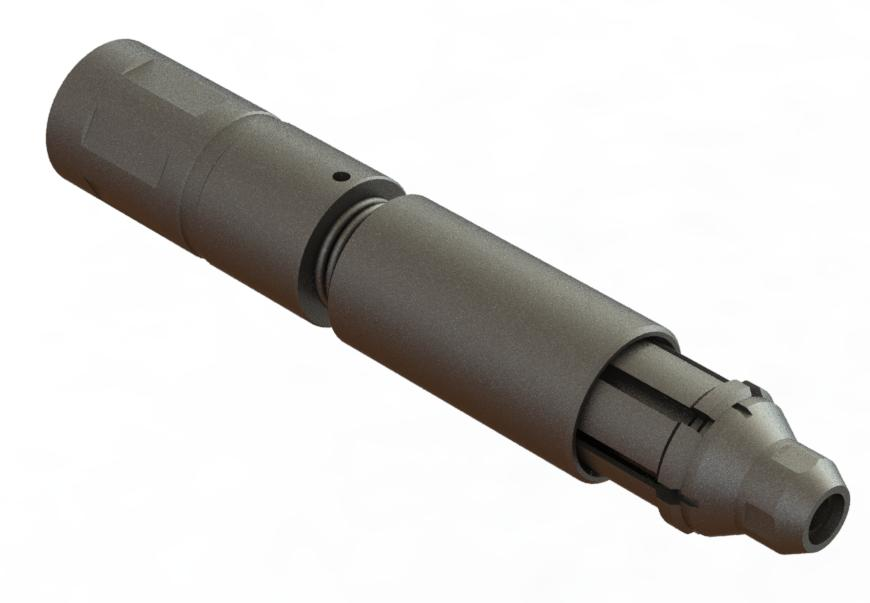

GS Fishing Tool
Applications
Standard GS fishing tool, used for fishing standard coiled tubing downhole tools.
Features
- Co-work with standard coiled tubing tools and perform tool fishing using GS fishing groove
- Nozzle equipped at bottom. Flush the drop fish top before fishing
- Releasing by ball dropping or displacement when fishing load exceeds bearing capacity
- Mechanical emergency release method equipped. In case hydraulic release fails, the tool can be lifted out by over-lifting load without leaving residues in the well.
Sizes Availability
| Model Number | Tool OD (mm) | GS Size (In) | Thread Type |
|---|---|---|---|
| 912-430 | 43 | 1-1/4 | 1-1/2 AMMT B |
| 912-490 | 49 | 1-1/2 | 1-1/2 AMMT B |
| 912-540 | 54 | 2 | 1-1/2 AMMT B |
| 912-635 | 63.5 | 2-1/2 | 1-1/2 AMMT B |
| 912-730 | 73 | 3 | 2-3/8 PAC B |
| 912-850 | 85 | 3-1/2 | 2-3/8 REG B |
