Sliding Sleeve Sand Jetting Tools Connected With Conventional Tubing
| Minimum Order Quantity | 1PC |
|---|---|
| Packaging Details | Free Fumigation Wooden Case |
| Delivery Time | 40-60Days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Tool OD (mm) | 98mm-125mm | Tool ID (mm) | 5mm-8mm |
|---|---|---|---|
| Nozzle Size (mm) | 6 X 4PCs 6 X 6PCs | Type | Sliding Sleeve Sand Jetting Tool |
| Material | 4140HT | Typical Application | Coiled Tubing/ Cementing/ Well Repairing/ Hydraulic Fracturing/ Milling/ Well Drilling |
| Standard Fulfill | API 5CT | Drilling Fluid Applied | Clean Water Base Mud/ Salty Water Base Mud And Oil Base Mud |
| Temerature Range | No Higher Than 175°C | HS Code | 84122910 |
| HS Code | 84314310 | ||
| Highlight | Sliding Sleeve Sand Jetting Tool,Coiled Tubing Jetting Tools |
||
Product Description

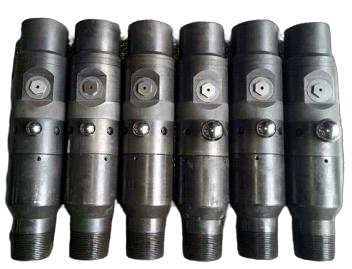

Sliding Sleeve Sand Jetting Tool
Applications
Connected with conventional tubing, it can be opened in stages by ball dropping for jet fracturing.
Features
- Sand is directly added into the pipe for fracturing, with the sand passing capacity of a single nozzle reaching 60 cubic meters
- 5-8 stages of segmentation can be achieved by matching steel balls of different sizes
Sizes Availability
| Model Number | Tool OD (mm) | Tool ID (mm) | Nozzle Size (mm) |
|---|---|---|---|
| 1108-98 | 98 | 5 | 6 x 4PCs |
| 1108-105 | 105 | 6 | 6 x 6PCs |
| 1108-125 | 125 | 8 | 6 x 6PCs |
