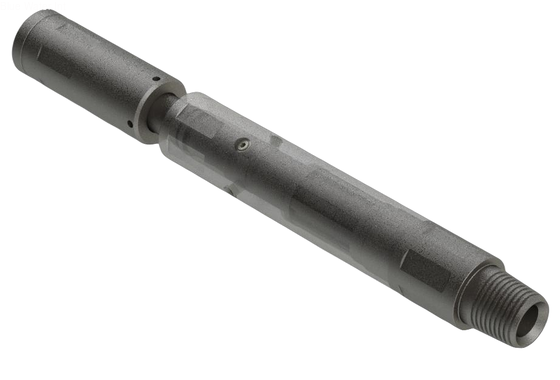

Flow Rate Setting Valve Milling Tools For High Torque Drilling Milling Operations
| Minimum Order Quantity | 1PC |
|---|---|
| Packaging Details | Free Fumigation Wooden Case |
| Delivery Time | 40-60Days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Tool OD (mm) | 54mm-79mm | Tool ID (mm) | 11mm-24mm |
|---|---|---|---|
| Thread Type | AMMT B*P Or PAC B*P | Name | Flow Rate Setting Valve |
| Feature | Torsion-resistant Structure | Material | 4140HT |
| Typical Application | Coiled Tubing/ Cementing/ Well Repairing/ Hydraulic Fracturing/ Milling/ Well Drilling | Standard Fulfill | API 5CT |
| Drilling Fluid Applied | Clean Water Base Mud/ Salty Water Base Mud And Oil Base Mud | Temerature Range | No Higher Than 175°C |
| HS Code | 84122910 | HS Code | 84314310 |
| Highlight | High Torque Flow Rate Setting Valve,High Torque Drilling Milling Tools |
||
Product Description
Flow Rate Setting Valve
Applications
Multiple operating modes are available for displacement control and fluid switching during drilling, milling, or well cleaning operations.
Features
- Tool working mode controlled through flow rate and weight on bit (WOB)
- Multi circulation channel switching to meet different working conditions
- Activation flow rate can be pre-adjusted at surface
- Different pressure gradients can be controlled by installing different nozzles in the flow channel
- Torsion-resistant structure equipped making it suitable for high-torque drilling and milling operations
Sizes Availability
| Model Number | Tool OD (mm) | Tool ID (mm) | Thread Type |
|---|---|---|---|
| 603-540 | 54 | 11 | 1-1/2 AMMT B*P |
| 603-730 | 73 | 24 | 2-3/8 PAC B*P |
| 603-790 | 79 | 24 | 2-3/8 PAC B*P |
