Flow Activated Releasable Spear Fishing Tool For Downhole Tubular Objects
| Minimum Order Quantity | 1PC |
|---|---|
| Packaging Details | Free Fumigation Wooden Case |
| Delivery Time | 40-60Days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Productname | Downhole Fishing Tools | Material | High-strength Metal |
|---|---|---|---|
| Tool OD (mm) | 54mm-79mm | Fishing Size Range (mm) | 50.8~54 54~63.5 67~79 |
| Thread Type | AMMT B PAC B | Type | Flow Activated Releasable Spear |
| Material | 4140HT | Typical Application | Coiled Tubing/ Cementing/ Well Repairing/ Hydraulic Fracturing/ Milling/ Well Drilling |
| Standard Fulfill | API 5CT | Drilling Fluid Applied | Clean Water Base Mud/ Salty Water Base Mud And Oil Base Mud |
| Temerature Range | No Higher Than 175°C | HS Code | 84122910 |
| HS Code | 84314310 | ||
| Highlight | Downhole Tubula Flow Activated Fishing Spear,Flow Activated Releasable Spear Fishing Tool |
||
Product Description

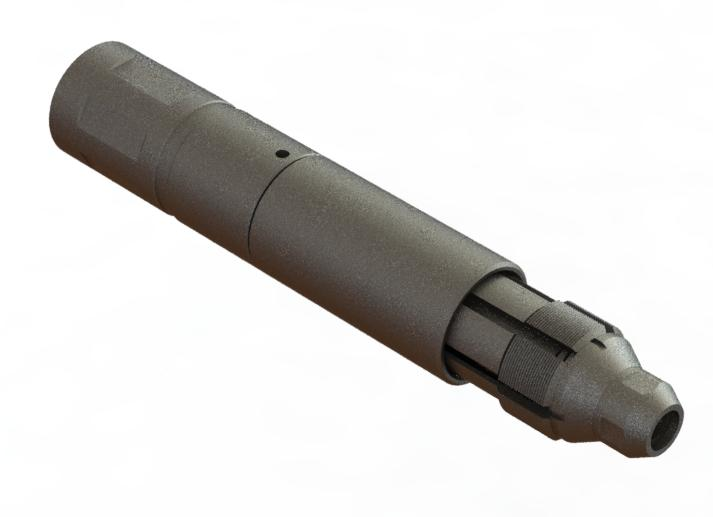

Flow Activated Releasable Spear
Applications
Used for fishing downhole tubular fallen objects, such as oil tubes or downhole tools with standard inner holes.
Features
- Lower the tool directly to enter the inner hole of the fishing object, and lift it up to achieve fishing
- Nozzle equipped at bottom to flush the drop fish top before fishing
- Releasing by ball dropping or displacement when fishing load exceeds bearing capacity
- Mechanical emergency release method equipped - if hydraulic release fails, the tool can be lifted out by over-lifting load without leaving residues in the well
Sizes Availability
| Model Number | Tool OD (mm) | Fishing Size Range (mm) | Thread Type |
|---|---|---|---|
| 910-540 | 54 | 50.8~54 | 1-1/2 AMMT B |
| 910-635 | 63.5 | 54~63.5 | 1-1/2 AMMT B |
| 910-790 | 79 | 67~79 | 2-3/8 PAC B |
