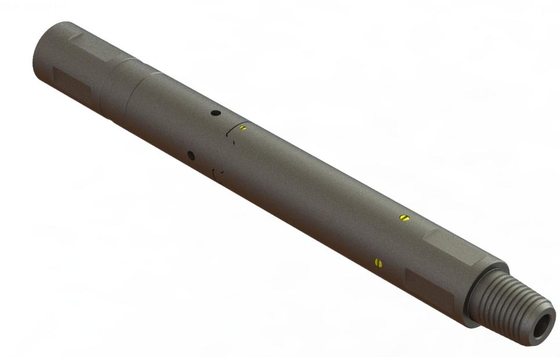

Big Thru Bore Hydraulic Disconnect Tools Claw Sleeve Structure For Coiled Tubing
| Minimum Order Quantity | 1PC |
|---|---|
| Packaging Details | Free Fumigation Wooden Case |
| Delivery Time | 40-60Days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Big Thru Bore Hydraulic Disconnect | Tool OD (In) | 1.69-3.11 |
|---|---|---|---|
| Tool ID (In) | 0.59-1.5 | Thread Type | AMMT B*P Or PAC B*P |
| Feature | Claw Sleeve Structure | Material | 4140HT |
| Typical Application | Coiled Tubing/ Cementing/ Well Repairing/ Hydraulic Fracturing/ Milling/ Well Drilling | Standard Fulfill | API 5CT |
| Drilling Fluid Applied | Clean Water Base Mud/ Salty Water Base Mud And Oil Base Mud | Temerature Range | No Higher Than 175°C |
| HS Code | 84122910 | HS Code | 84314310 |
| Highlight | Big Thru Bore Hydraulic Disconnect,Claw Sleeve Structure Hydraulic Disconnect,Coiled Tubing Hydraulic Disconnect Tools |
||
Product Description
Big Thru-Bore Hydraulic Disconnect
Applications
The Big Thru-Bore hydraulic disconnect features a larger bore design for coiled tubing stimulation and wellbore cleanup operations. The lower tool can be released by ball drop mechanism, providing enhanced operational efficiency for production and cleaning applications.
Features
- Claw sleeve structure with Bigger Thru-Bore design
- Disconnect activated by surface ball drop with precise pressure control
- Positive torque drive teeth provide exceptional torsion strength
Sizes Availability
| Model Number | Tool OD (In) | Tool ID (In) | Thread Type |
|---|---|---|---|
| 203-430 | 1.69 | 0.59 | 1 AMMT B*P |
| 202-450 | 1.77 | 0.59 | 1 AMMT B*P |
| 202-508 | 2.0 | 0.59 | 1-1/2 AMMT B*P |
| 202-540 | 2.125 | 0.75 | 1-1/2 AMMT B*P |
| 202-635 | 2.5 | 1 | 1-1/2 AMMT B*P |
| 202-730 | 2.88 | 1.38 | 2-3/8 PAC B*P |
| 202-790 | 3.11 | 1.5 | 2-3/8 PAC B*P |
Custom requirements for special threads, sizes, materials and specifications are available upon request.
