Changeable Nozzle Design Downhole Circulation Short Sub For Drilling And Milling
| Minimum Order Quantity | 1PC |
|---|---|
| Packaging Details | Free Fumigation Wooden Case |
| Delivery Time | 40-60Days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Tool OD (mm) | 38mm-79mm | Type | Downhole Circulation Short Sub |
|---|---|---|---|
| Application | Drilling And Milling | Tool ID (mm) | 14mm-32mm |
| Thread Type | AMMT B*P Or PAC B*P | Feature | Changeable Nozzle Design |
| Material | 4140HT | Typical Application | Coiled Tubing/ Cementing/ Well Repairing/ Hydraulic Fracturing/ Milling/ Well Drilling |
| Standard Fulfill | API 5CT | Drilling Fluid Applied | Clean Water Base Mud/ Salty Water Base Mud And Oil Base Mud |
| Temerature Range | No Higher Than 175°C | HS Code | 84122910 |
| HS Code | 84314310 | ||
| Highlight | Downhole Circulation Short Sub,Changeable Nozzle Circulation Short Sub |
||
Product Description

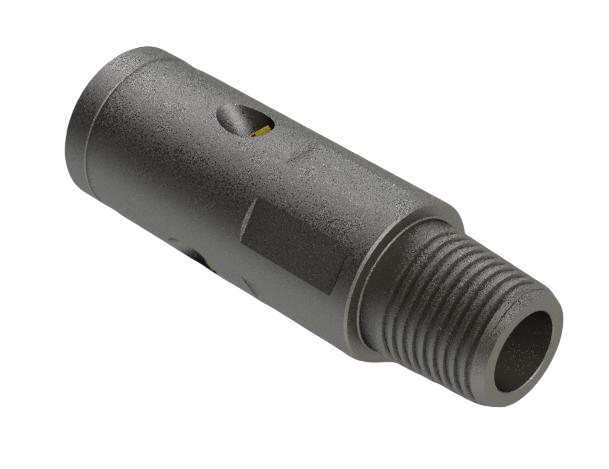

Downhole Circulation Short Sub
Applications
Optional tool for high flow rate drilling and milling operations, which increases annular return velocity through a bypass to protect the downhole motor.
Features
- Hard alloy nozzle installed for enhanced durability
- Changeable nozzle design for field operation flexibility
Available Sizes
| Model Number | Tool OD (mm) | Tool ID (mm) | Thread Type |
|---|---|---|---|
| 601-380 | 38 | 14 | 1 AMMT B*P |
| 601-430 | 43 | 19 | 1 AMMT B*P |
| 601-540 | 54 | 25 | 1-1/2 AMMT B*P |
| 601-730 | 73 | 35 | 2-3/8 PAC B*P |
| 601-790 | 79 | 35 | 2-3/8 PAC B*P |
