Heavy Duty Motorhead Assembly For Coiled Tubing Tool String Designs
| Minimum Order Quantity | 1PC |
|---|---|
| Packaging Details | Free Fumigation Wooden Case |
| Delivery Time | 40-60Days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Tool OD (mm) | 45mm-79mm | Tool ID (mm) | 13mm-22mm |
|---|---|---|---|
| Thread Type | AMMT B*P Or PAC B*P | Feature | Compact Structure |
| Item | Heavy Duty Motorhead Assembly | Material | 4140HT |
| Typical Application | Coiled Tubing/ Cementing/ Well Repairing/ Hydraulic Fracturing/ Milling/ Well Drilling | Standard Fulfill | API 5CT |
| Drilling Fluid Applied | Clean Water Base Mud/ Salty Water Base Mud And Oil Base Mud | Temerature Range | No Higher Than 175°C |
| HS Code | 84122910 | HS Code | 84314310 |
| Highlight | Coiled Tubing Motorhead Assembly,Heavy Duty Motorhead Assembly |
||
Product Description

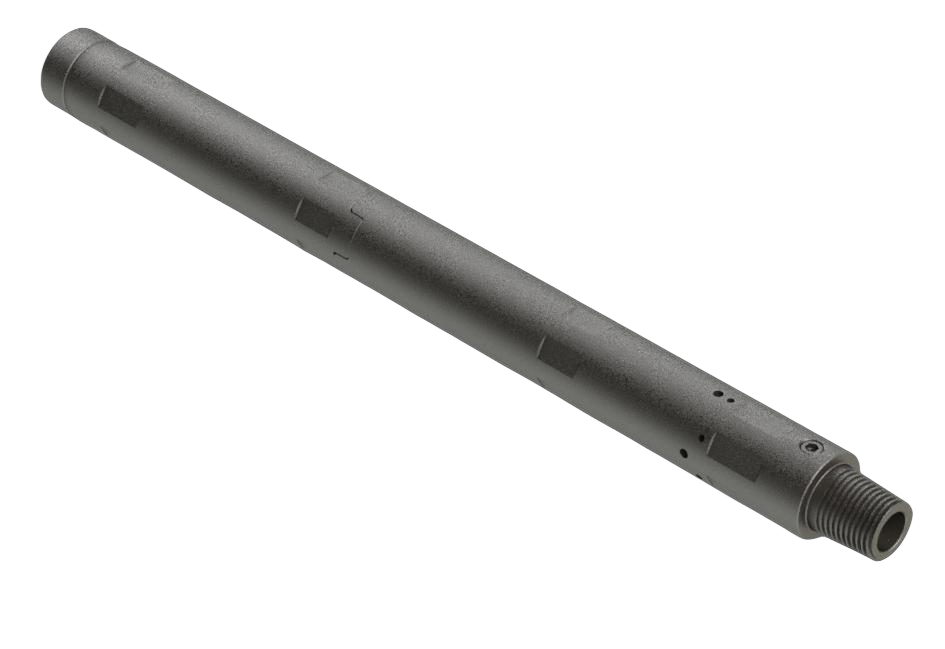

Heavy Duty Motorhead Assembly
Applications
Heavy motorhead assembly is one of the essential tools for overloaded or complex working conditions for coiled tubing tool string designs. The MHA combines the double flapper check valve with the heavy duty hydraulic disconnect and the dual circulation valve.
Features
- More compact structure, 20% shorter compared to the conventional MHA
- Bigger torque available, 40% bigger than conventional MHA
- Retrieved with a standard GS running tool
Sizes Availability
| Model Number | Tool OD (mm) | Tool ID (mm) | Thread Type |
|---|---|---|---|
| 310-450 | 45 | 13 | 1 AMMT B*P |
| 310-508 | 50.8 | 13 | 1-1/2 AMMT B*P |
| 310-540 | 54 | 17 | 1-1/2 AMMT B*P |
| 310-603 | 60.3 | 17 | 1-1/2 AMMT B*P |
| 310-635 | 63.5 | 17 | 1-1/2 AMMT B*P |
| 310-730 | 73 | 22 | 2-3/8 PAC B*P |
| 310-790 | 79 | 22 | 2-3/8 PAC B*P |
