Coiled Tubing Velocity String Dissolvable Plug Easy Operation 500 ~ 1500 Psi
| Minimum Order Quantity | 1PC |
|---|---|
| Packaging Details | Free Fumigation Wooden Case |
| Delivery Time | 40-60Days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Activation Pressure (Psi) | 500 ~ 1500 Adjustable | Tool OD (In) | 1.0-2.0in |
|---|---|---|---|
| Type | Dissolvable Plug | Durability | High |
| Application | Block The Internal Channel Of The Coiled Tubing | Material | 4140HT |
| Typical Application | Coiled Tubing/ Cementing/ Well Repairing/ Hydraulic Fracturing/ Milling/ Well Drilling | Standard Fulfill | API 5CT |
| Drilling Fluid Applied | Clean Water Base Mud/ Salty Water Base Mud And Oil Base Mud | Temerature Range | No Higher Than 175°C |
| HS Code | 84122910 | HS Code | 84314310 |
| Highlight | Velocity String Dissolvable Plug,Easy Operation Velocity String Plug |
||
Product Description

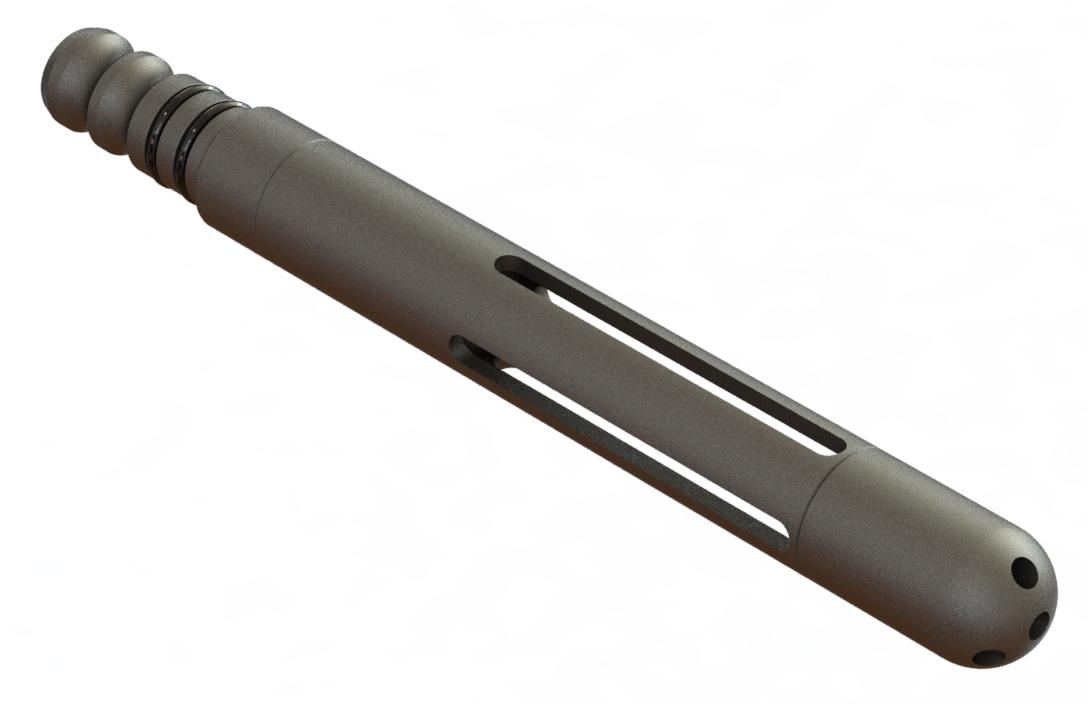

Dissolvable Plug
Applications
Used to block the internal channel of the coiled tubing when running the coiled tubing velocity string.
Features
- Roll-on connect to the coiled tubing for easy operation
- Activated directly by pressure buildup inside the pipe, with the activation pressure adjustable at the wellhead
- Internal plug core can be made of a dissolvable material, which dissolves quickly after activation
Sizes Availability
| Model Number | Tool OD (In) | Activation Pressure (Psi) |
|---|---|---|
| 803-100 | 1.0 | 500 ~ 1500 Adjustable |
| 803-125 | 1.25 | 500 ~ 1500 Adjustable |
| 803-150 | 1.5 | 500 ~ 1500 Adjustable |
| 803-175 | 1.75 | 500 ~ 1500 Adjustable |
| 803-200 | 2.0 | 500 ~ 1500 Adjustable |
